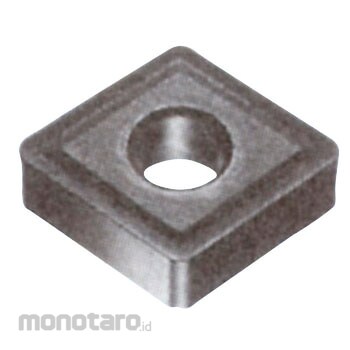

Sumitomo Electric Hard Metal Chip CNMG-UZ
#Grup produk P114321998
Spesifikasi
| Abrasive Materials | K (cast iron) |
|---|---|
| Accuracy Grade | M class |
| Blade Length l (mm) | 12.9 |
| Chip breaker | UZ |
| Clearance Angle (°) | 0 |
| Corner Radius (mm) | 1.2 |
| Cutting Blade Length (mm) | 12.9 |
| Cutting area | All-around type for general cutting |
| Maker's Former Part No. | CNMG433ENZ |
| Material | G10E |
| Nose Radius r (mm) | 1.2 |
| Shape | Diamond shape 80 ° |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Thickness s (mm) | 4.76 |
| Tolerance of Inscribed Circle (mm) | ±0.05~±0.15 |
| Type | Negative |
| With Or Without Hole | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
* For separately shipped products, if you order by cash on delivery, it will be shipped the next day or later.
