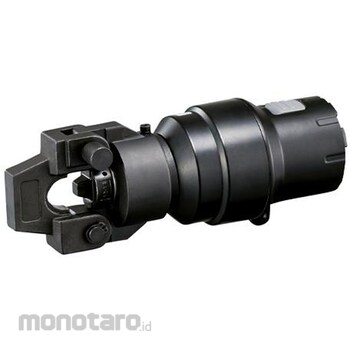

ESCO Crimp Attachment
#Grup produk P114118279
Spesifikasi
| Crimping Range (mm²) | Die combinations, bare crimp terminals and sleeves for copper wire: Connector 14: Male die 14-38 Connector 22: Male die 14-38 Connector 38: Male die 14-38 Connector 60: Male die 60 (female die is shared by 14-60) |
|---|---|
| Mass (kg) | 1.6 |
| Mounting Side | Mounting: 8 directions (in 45 degree increments) |
| Nominal Output (kN) | 40 |
| Overall Length (mm) | 176 |
| Performance | CV wire (14): Approx. 310 times CV wire (22): Approx. 220 times CV wire (38): Approx. 105 times CV wire (60): Approx. 100 times |
| Suitable For | For EA813PA-4, -5, -18, -19 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Accessories: Male die 14-38, male die 60, aluminum case. Introducing the" crimping attachment" that allows crimping work simply by attaching it to a compatible impact driver, and the" cable cutter attachment" that allows cable cutting simply by attaching it to a compatible impact driver/drill driver. It makes the work time of wiring work more efficient and reduces the burden during work. When the attachment is connected, it can be installed at 8 angles depending on the work environment, making work at various angles comfortable. Crimp with forward rotation and release with reverse rotation. Comes with a color line that allows you to check the completion of crimping. It is easy and simple to work at various angles even when crimping upwards. By working with a strap, you can work safely and securely even at high altitudes. Comes with an aluminum case. By using the cable cutter attachment (EA813PA-87) sold separately, you can tighten screws, cut cables, and crimp smoothly.
