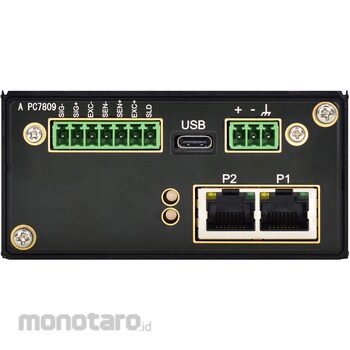

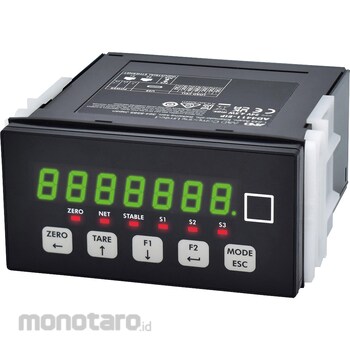

A weighing indicator with industrial Ethernet as standard. Signals from load cells can be connected to a host system via EtherNet/IP (AD-4411-EIP), PROFINET (AD-4411-PRT), or EtherCAT (AD-4411-ECT). Equipped with a newly developed high-performance digital filter, it achieves both high accuracy and high-speed response in environments with a lot of vibration, which was previously difficult to achieve. High-speed A/D conversion of 1,200 times per second is possible. The lightweight and compact body is ideal for embedding in control panels, etc. Display unit: Dustproof and waterproof IP65 (when panel mounted). Cross-wiring is easily possible using a general-purpose LAN cable. Signals from load cells can be displayed in mV/V. Using the Windows application software "WinCT4411", it is possible to change, back up, and copy settings, monitor waveforms, and log via USB (a separate USB TypeA - TypeC cable is required).
Dustproof and waterproof: When panel mounted, display unit is IP65 (using included gasket) External dimensions: 96 (W) x 48 (H) x 98.5 (D) mm (including protrusions)
Weight: Approx. 220g Accessories: Simple instruction manual, waterproof packing, panel mount bracket x 2, weighing nameplate, unit label, power connector, load cell connector
Reduces wiring for industrial control systems in plants and factories, facilitates equipment expansion, and reduces system and software development.
*There are three types: for EtherNet/IP, for PROFINET, and for EtherCAT. The part numbers are different. Please be careful when ordering. *For EtherNet/IP (AD4411-EIP), for PROFINET (AD4411-PRT), for EtherCAT (AD4411-ECT).
A&D Industrial Ethernet compatible weighing indicator
#Grup produk P113885596
Spesifikasi
| Conversion System | (A / D) Delta Sigma method |
|---|---|
| Display Resolution | Maximum 999999(d) |
| Input / output | (External) EtherNet/IP, USB (for maintenance) |
| Input Sensitivity | 0.15μV/d or more (d=minimum scale) |
| Non-linearity | 0.005% of F.S. |
| Power Supply | DC24V +10% -15% |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | (Internal) Approximately 16000000 |
| Sampling Speed | 1200 times/sec |
| Temperature coefficient | [Zero point] 0.02μV/ °C Typ., ±0.1μV/ °C Max. [Span] ±3ppm / °C Typ., ±15ppm / °C Max. |
| Voltage | Load cell application: DC5V±5%, 120mA, with remote sensing function, up to 6 350Ω load cells can be connected, maximum measurement: 35mV |
| Zero Adjustment Range | -35~+35mV |
