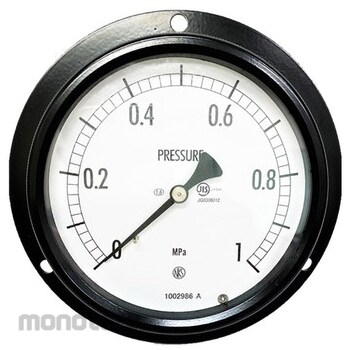

NAGANO KEIKI Sealed pressure gauge (D frame, embedded type) 100Φ Model number: BE17 (plastic case)

By adopting a sealed case, it can be used even under conditions such as rain and dew. (Equivalent to JIS C 0920 IP43)
Standard conformity stamp (type approval) is available. (Depending on size / accuracy / pressure range)
It has a wide pressure measurement range and can be used when corrosion resistance is required.
Compatible with JIS B 7505-1 Bourdon tube pressure gauge. It is a pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to the pointer, and it is easy to handle because of its simple structure. It can also measure a wide pressure range and is used in a wide range of fields.
*When selecting a pressure gauge, please select a pressure range so that the upper limit of the normal operating pressure is within the following range to ensure full performance.
*For constant pressure: 3/4 or less of the maximum value of the pressure range, for fluctuating pressure: 2/3 or less of the maximum value of the pressure range *Please also make sure that the materials of the liquid-contacting parts listed are suitable for the gas or liquid to be measured.
