This pressure gauge has a structure that transmits the elastic deformation (movement) of the Bourdon tube to the pointer, and its simple structure makes it easy to handle. It can also measure a wide pressure range and is used in a wide range of fields.
By adopting a sealed case, it can be used even under conditions such as rain and dew. (Equivalent to JIS C 0920 IP43)

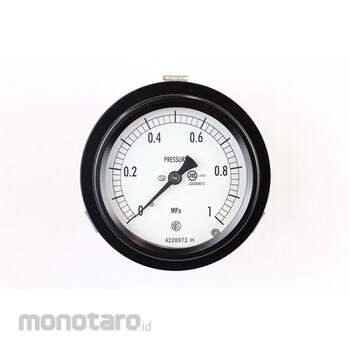

NAGANO KEIKI Sealed pressure gauge (75Φ) 1MPa Recessed type D frame (mounting bracket) BC15-181 series
#Grup produk P113801354
Spesifikasi
| AS ONE Part Number | 65-4297-52 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Size (mm): DIA75 *Shape (mounting): Recessed type D frame (mounting bracket) *Connection: R3/8 *Material: Brass *Performance: None *Pressure range: MPa_0 to 1 *Accuracy: ±1.6% FS*Processing: None*Classification: JIS
