This pressure gauge has a structure that transmits the elastic deformation (movement) of the Bourdon tube to the pointer, and its simple structure makes it easy to handle. It can also measure a wide pressure range and is used in a wide range of fields.
By adopting a sealed case, it can be used even under conditions such as rain and dew. (Equivalent to JIS C 0920 IP43)

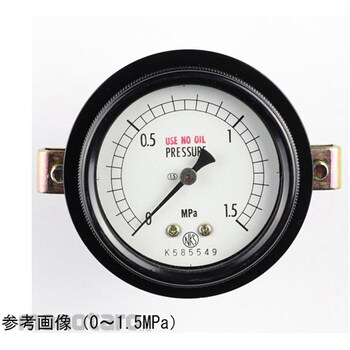

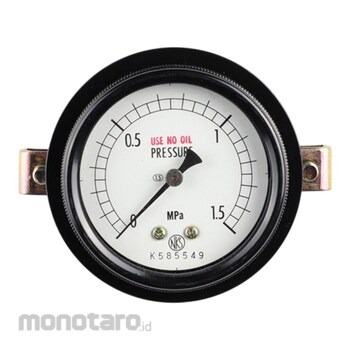

NAGANO KEIKI Sealed pressure gauge (60Φ) Built-in D frame (mounting bracket) BA15-123 series
#Grup produk P113801071
Spesifikasi
| AS ONE Part Number | 65-4293-69 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Size (mm): DIA60*Shape (mounting): Embedded D frame (mounting bracket)*Connection: G1/4B*Material: SUS*Performance: None*Pressure range: MPa_0 to 0.5*Accuracy: ±1.5%FS*Treatment: Oil-free*Category: 0
