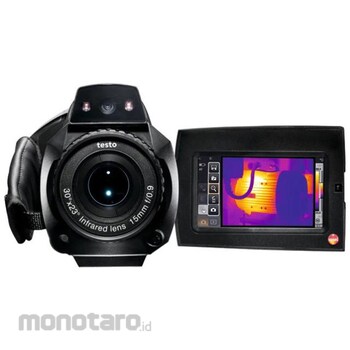

The testo 890 is Testo's top-of-the-line thermal imager, with a detector of 640 x 480 pixels, the highest resolution available.
Meets all your thermal diagnostic requirements in industrial and building sectors.
It can be used for a wide range of applications, from industrial fields such as high-temperature measurement in plants, analysis of electronic circuit boards, and management of solar panels, to building and energy diagnosis.
With high temperature measurement option, temperatures up to +1200°C can be measured.
Facility maintenance: Detecting defects in structures such as homes with infrared thermography; Structural diagnosis; Exterior wall diagnosis; Condensation and mold risk measurement; Identifying leaks in heating equipment pipes; Roof leak diagnosis; Quality assurance and production equipment inspection; Safe high-temperature measurement; Research and development; Power generation (transformation) equipment inspection.
*Cannot be used for medical temperature measurement.
*Cancellations or returns are not possible after placing an order.
*Products with product numbers including "Calibration certificate related documents included" cannot be purchased by individuals.
*Products with part numbers including "Calibration certificate related documents included" come with a "Calibration certificate, traceability system diagram, and inspection report."
*Calibration points are those specified by the manufacturer. (Please check the specifications for the specified points.)
*We do not deliver to private homes (detached houses or apartment buildings).
TESTO Infrared Thermography
#Grup produk P113755790
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp499.999.900 - Rp629.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Battery | Dedicated lithium-ion battery (4.5 hours of operation) |
|---|---|
| Frame Rate | 33(Hz)(Hz) |
| Measuring Range (°C) | -30 to +100, 0 to +350 (changeable), 0 to +650 (changeable) |
| Protection Class | IP54 |
| Spectral Range | 7.5~14μmμm |
| Temperature Resolution (°C) | 0.04 or less (+30 hours) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*SuperResolution (IFOV): 0.71 mrad (standard lens), 0.43 mrad (25° lens), 0.26 mrad (telephoto lens)*Digital zoom/image: 1-; 3-fold*Video output: USB 2.0 Micro HDMI*Visible image output/pixel count (MP): 3.1*Visible image output/minimum focusing distance (m): 0.5*Spatial resolution (IFOV)/standard lens (mrad): 1.13*High temperature measurement option: +350 to +1200°C (not supported with super telephoto lens)*Minimum focusing distance/standard lens (m): 0.1*Tripod mounting: 1/4 - 20UNC screw*Typical accuracy: (Typical) (Typical) ±2°C , or ±2% of the measured value (whichever is greater) (-20 to +650°C) * Infrared resolution (pixels): 640 x 480 (when using SR function: 1280 x 960pix) * Measurement/emissivity: 0.01; 1
