The setting display unit is used in combination with the radiation thermometer IR-CZ, IR-SA, or IR-CA (with RS-485 option) to set emissivity, display measured values, and also supply DC power to the IR-CZ, IR-SA, or IR-CA.
*Please note that the contents may be changed without notice due to performance improvements, etc.
*Please check the manufacturer's website for the latest information.

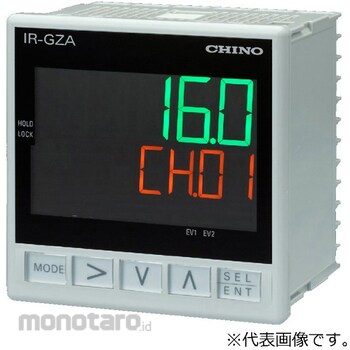

CHINO Setting display IR-GZA
#Grup produk P113712865
Sebelum PPN:
Rp23.999.900 - Rp34.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector | Radiation thermometer: Communication RS-485 |
|---|---|
| Display | Temperature, Event Status |
| Event Output | [Number of points] 2 points Select two from upper limit, upper upper limit, lower limit, lower lower limit temperature alarm, and thermometer self-diagnosis alarm. Relay a contact output (common) [Contact capacity] 240V AC 1.5A, 30V DC 1.5A |
| Function | Temperature display, parameter setting and parameter transmission to radiation thermometer, temperature alarm judgment, signal modulation processing, analog temperature signal transmission |
| Parameters | Settings: For radiation thermometer parameter transmission, [emissivity (ratio)] 1.999 to 0.050, signal modulation mode, signal modulation time constant/attenuation rate, analog output scaling |
| Power Consumption (VA) | [100V AC] Max. 28, [240V AC] Max. 36 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Terminal | M3 |
| Thermometer | Temperature value, self-diagnosis information |
| Type of Sign | Panel embedded installation |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Please note that the contents may be changed without notice due to performance improvements, etc.*Please check the manufacturer's website for the latest information.
Feature
The setting display unit is used in combination with the radiation thermometer IR-CZ, IR-SA, or IR-CA (with RS-485 option) to set emissivity, display measured values, and also supply DC power to the IR-CZ, IR-SA, or IR-CA.Connected device: Radiation thermometer IR-CZ, IR-SA, IR-CA series, Signal modulation: [DELAY] First order delay (Modulation time constant...0.0 to 99.9 s, 0.1 s steps or 0.00 to 9.99 s, 0.01 s steps, arbitrarily settable) Modulation time constant 0 = REAL [PEAK] Traces maximum value Attenuation rate...When connected to IR-CZ or IR-CA, 0.1 to 10.0°C/s, arbitrarily settable in 0.1 s steps; when connected to IR-SA, select from 0, 2, 5, 10.0°C/s, moisture-proof substrate
