By inserting a connector-type thermocouple (sold separately), it is possible to record 15,000 points of data.
The imported data is saved in CSV format, making it easy to graph using commercially available spreadsheet software.
When connected to a computer, power is supplied via USB and data is imported directly to the computer.
* We do not deliver to private homes (detached houses / apartments).

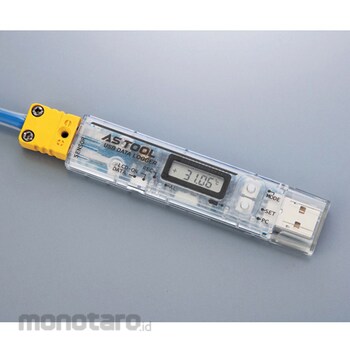

AS ONE K Thermocouple Data Logger with Chinese Calibration Certificate
#Grup produk P113690785
Spesifikasi
| AS ONE Part Number | 2-7963-03-57 |
|---|---|
| Calibration Certificate | General proofreading (Chinese) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
=Specification&""&attvalueMeasurement range: -200 to 999.9°C*Temperature sensor: K-type thermocouple (sold separately: Omega Mini Plug SMP-KM type)*Measurement accuracy (25°C): ±0.8°C (excluding thermocouple error)*Maximum Recording capacity: 15000 points *Measurement interval: 5 to 59 seconds / 1 to 240 minutes *Battery: CR1220 button battery (included for testing) *Battery life: Approximately 1 year (measured every hour) *Size: 95.0 x 21.0 x10.4mm*Weight: Approx. 21g (excluding batteries and thermocouple)*Supported OS: Windows(R) Vista/7/8/8.1/10 (32/64bit)* Click here to download the dedicated application (v1.20) **Supported OS: Windows(R)7/8/8.1/10 (32/64bit)*Calibration points are minimum temperature and maximum temperature 2 points. *No sensor, only the main unit is calibrated. **If you would like to calibrate the main body and sensor as a set, please contact us separately.
