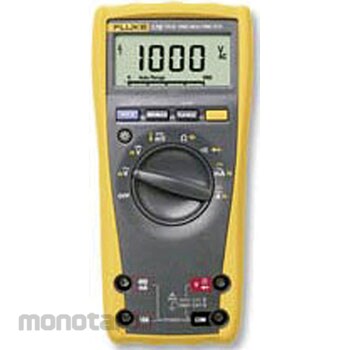

Selected by professional engineers around the world for accuracy, reliability and ease of use. This product is an industry standard and has all the features you need to troubleshoot and repair the vast number of problems found in electrical and electronic equipment.
Features True-rms voltage and current measurement, 6000 count resolution, manual and automatic range setting. It also allows frequency, capacitance, resistance, conduction, and diode measurements.
There is a backlit digital display capable of displaying analog bar graphs with a higher basic accuracy of 0.09%.
*Products with proofreading documents cannot be canceled after ordering.Only products that include proofreading documents and traceability system diagrams will be accompanied by applicable documents. Calibration points are standard points determined by the calibration company.
*Products whose part number includes (English version of calibration certificate included) will be calibrated at a calibration point based on the standards of an external calibration company based on the ISO quality management system, and will be shipped after the document is issued.
FLUKE Digital Multimeters
#Grup produk P113687684
Spesifikasi
| AC Voltage (V) | [Accuracy: 1.0% + 3 (45 Hz to 500 Hz)] 600.0m, 6.000, 60.00, 600.0, [Accuracy: 2.0% + 3 (500 Hz to 1 kHz)] 1000 |
|---|---|
| Battery Life (hour) | Alkaline battery: typically 200 without backlight |
| Capacitance | [Accuracy: 1.2% + 2] 1000nF, 10.00μF, 100.0μF, [Accuracy: 10% typical] 9999μF |
| DC Current (DCA) | 60.00mA, 400.0mA, 6.000A, 10.00A [Accuracy: 1.0%+3] |
| DC Voltage (V) | [Accuracy: 0.09% + 2] 600.0m.6.000, 60.00.600.0, [Accuracy: 0.15% + 2] 1000 |
| Digital isplay | 6000 counts |
| Dimensions, Width W x Height H x Depth D (mm) | 43x185x90 |
| Diode Test | 2.400V |
| Frequency (Hz) | [Accuracy: 0.1%+1] 99.99, 999.9, 9.999k, 99.99k |
| Humidity Range | 0 to 90% (0 to 35°C), 0 to 70% (35 to 50°C) (no condensation) |
| Mass (g) | 420 |
| Maximum Value of Measurement | (DC voltage) 1000V, (AC voltage) 1000V, (DC current) 10A, (AC current) 10A, (Resistance) 50MΩ, (Capacitance) 10000μF, (Frequency) 100kHz |
| Resistance (Ω) | [Accuracy: 0.09% + 2] 600.0, [Accuracy: 0.09% + 2] 6.000.60.00.600.0.6.000M, [Accuracy: 1.5% + 3] 50.00M |
| Safety | "Overvoltage category" EN 61010-1 to 1000 V CAT III, EN 61010-1 to 600 V CAT IV |
| Service Life | Alkaline battery: Up to 200 hours as standard when no backlight is used |
| Temperature | -40 °C~+400 °C,-40 °F~+752 °F |
| Warranty Period | Limited Lifetime Warranty |
