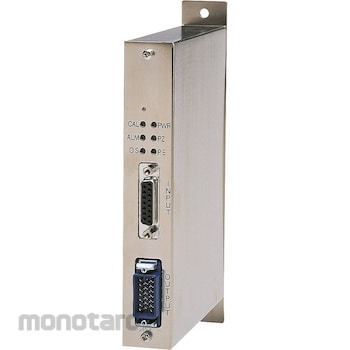

Mitutoyo Pulse signal unit (539-005)
#Grup produk P113549685
Spesifikasi
| Connector | Output: MR-20RMA (Honda Tsushin Kogyo) |
|---|---|
| Connector Specifications | DA-15S-NR (JAE) equivalent/MR-20RMA (Honda Tsushin Kogyo) |
| Dimensions, Width x Depth x Thickness (mm) | 160x100x28 |
| Division Number | 4,8,10,20,40,80,100,200 |
| Input Signal | Alarm reset signal; AL (anode), AL (cathode) photocoupler input |
| Mitutoyo Product No. | 539-005 |
| Number of Axis | 1 |
| Operating Ambient Temperature (°C) | 0~50 |
| Output Signal | 90° solid phase difference two-phase sine wave |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Storage Temperature Range (°C) | -20~70 |
| Supply Voltage (V) | DC5±5% |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The PSU-200 is a device that can achieve high precision positioning by combining a linear scale with an NC feedback system or measurement control device, by dividing the sine wave signal output from the manufacturer's linear scale by a minimum of 4 and a maximum of 200, and converting the sine wave into a square wave signal and outputting it.
