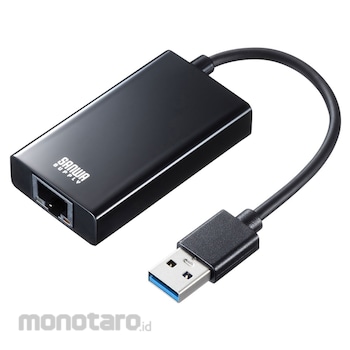

SANWA SUPPLY USB Conversion Adapter
#Grup produk P113531729
Spesifikasi
| Access Method | CSMA/CD |
|---|---|
| Cable Length (m) | 0.9 |
| Connector 1 | USB Type-A |
| Connector 2 | USB Type-A,RJ1-45 |
| Connector Shape | USB3.2 Gen1 (USB3.1 / 3.0) A connector Male x 1 (upstream), USB3.2 Gen1 (USB3.1 / 3.0) A connector Female x 1 (downstream), RJ-45 ( Auto MDI / MDI-X) x 1 port, compatible with Auto-Negotiation |
| Conversion Type | Male-female |
| Current Consumption | 380mA |
| Female Mounting | USB3.2 Gen1(USB3.1/3.0)A |
| Interface | USB port: USB specification Ver3.2 Gen1 (USB3.1 / 3.0) compliant (USB Ver2.0 / 1.1 upward compatible), LAN port: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX) Fast Ethernet), IEEE802.3ab (1000BASE-T) |
| Male Mounting | USB3.2 Gen1(USB3.1/3.0)A |
| Operating Environment | Operating temperature: 0 ° C to 40 ° C, storage temperature: -20 ° C to 60 ° C, operating humidity: 0 to 80% |
| Power Consumption | 2.5W |
| Power Supply | Bus power |
| Power Supply Voltage | 5V |
| Set Contents | Instruction manual |
| Standard | IEEE802.3(10BASE-T)IEEE802.3u(100BASE-TX)IEEE802.3ab(1000BASE-T) |
| Supported Protocols | IPv4,IPv6 |
| Transmission Speed | 1000Mbps / 100Mbps / 10Mbps (theoretical value) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
USB3.2 An adapter that converts a Gen1 (USB3.1 / 3.0) port to a LAN port (RJ-45 connector). It supports USB3.2 Gen1 (USB3.1 / 3.0) and supports gigabit (1000BASE-T) communication. High-speed network communication is possible even on a personal computer that does not have a wired LAN port. With one USB hub port, you can connect various USB devices. Since it supports Auto-Negosiation, it will automatically connect in the appropriate communication mode even if it is not a gigabit network. A cable-integrated type that is convenient to carry and handle. * Operation cannot be guaranteed for connections via a USB hub. Please use it by connecting it directly to the USB port of your computer. * It may not operate normally even if it is a compatible model, compatible connected device / environment. * Wake On LAN function is supported, but operation is not guaranteed as the support differs depending on the PC model. * It may not work properly due to OS update. For details, please check the software download page on the manufacturer's HP. * Nintendo Switch is a trademark or registered trademark of Nintendo.
Feature
SpecificationLAN power supply voltage: 5V PD compatible: Not supported USB hub port Supply current: Maximum 520mA (when 900mA is supplied from a personal computer) Port shape: RJ-45 port (Auto MDI / MDI-X), Auto-Negotiation compatible Supply Current: Maximum 520mA (when 900mA is supplied from the personal computer) Communication mode: Full duplex / Half duplex Conversion destination connector: RJ-45
