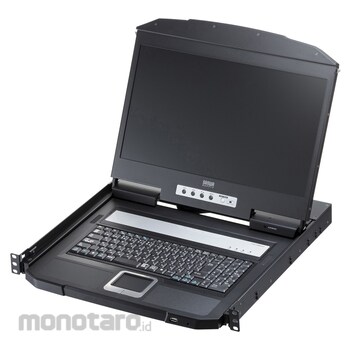

This LCD console drawer can be stored in a server rack and integrates an 18.5-inch widescreen LCD monitor and a keyboard with a touchpad.
The monitor supports inputs up to 1920 x 1200/60Hz, and scales the display output to a resolution of 1920 x 1080 dots.
The slide rail structure allows it to be neatly stored in a 1U size server rack when not in use.
The consoles required for server management, such as the monitor, keyboard, and mouse, can be installed and stored in a space-saving manner, significantly improving work efficiency.
The long rails allow it to be combined with the Sanwa Supply automatic PC switch (SW-KVM8HU). It allows for efficient operation by switching between multiple servers. *When installing the SW-KVM8HU behind a server rack, the rack must be 87.9cm to 105cm deep.
The front panel features a USB port for a second mouse, and the rear panel has a second KVM console (USB keyboard/mouse and HDMI monitor) port.
SANWA SUPPLY LCD Console Drawer with Sliding, USB/HDMI Compatible
#Grup produk P113497106
Spesifikasi
| Brightness (cd/m²) | 350 |
|---|---|
| Contrast Ratio | 1000:1 |
| Display Color | 16.7 million colors |
| Key Type | Membrane method |
| Key pitch (mm) | 19 (except for character keys) |
| Key stroke (mm) | 2.6 |
| LCD Panel | 18.5 inch TFT-LCD |
| Number of Keys | 105 keys (Japanese layout) |
| Pixel Pitch (mm) | 0.213x0.213 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Refresh Rate (Hz) | 60 |
| Resolution | 1920x1080 |
| Response Time (ms) | 20 |
| Suitable Models | Windows (DOS/V) desktop or laptop computer; Apple Mac series (with a female USB A connector and HDMI output); Sanwa Supply KVM Switch (SW-KVM8HU) |
| Supported Resolution | Input: 1920 x 1200/60Hz, 1920 x 1080/60Hz, 1680 x 1050/60Hz, 1440 x 900/60Hz, 1366 x 768/60Hz, 1280 x 1024/75,60Hz, 1280 x 800/60Hz, 1024 x 768/75,70,60Hz, 800 x 600/75,72,60,56Hz, 720 x 400/70Hz, 640 x 480/75,72,60Hz |
| Video Output | HDMI |
| Viewing Angle | 178°(horizontal), 178°(vertical) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationTouchpad type: Capacitive; Tap function: Yes (single click, double click, drag, scroll)
