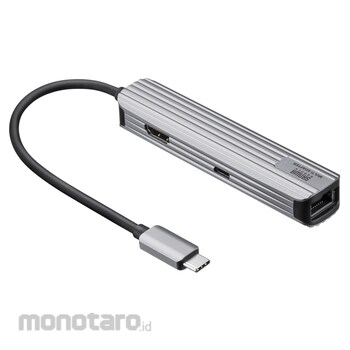

This is a USB Type-C multi conversion adapter that allows you to extend the connection of HDMI displays, USB devices, and wired LAN with a single Type-C cable.
By connecting a single Type-C cable, you can comfortably operate the large screen display and USB devices, and when you go out or have a meeting, you can easily carry it by simply unplugging the Type-C cable.
You can easily create a multi-display environment (mirror mode/expansion mode) without installing software to support "DisplayPort Alt Mode", an HDMI display extension via USB Type-C connection.
It supports "USB Power Delivery (USB PD)" with USB Type-C, and power supply to the connected computer is also possible via this product. Supports charging up to 100W.
Since it supports Gigabit Ethernet, it also supports Gigabit network environments, and can be connected to a wired LAN with a single Type-C cable. *Although it supports the Wake On LAN function, it is not guaranteed to work because the correspondence differs depending on the model of the PC.
* Models that have a USB port (Type-C female) and whose USB port operation is guaranteed by the computer manufacturer.
*A USB3.2 Gen1 (USB3.1/3.0) port is required on the PC to operate in a USB3.2 Gen1 (USB3.1/3.0) environment.
* Monitors with USB Type-C connection are not supported.
*Only the Type-C port that supports video output is supported. (DisplayPort Alt Mode)
* Some PCs and USB devices may not be compatible.
*Company names and product names mentioned are generally trademarks or registered trademarks of their respective companies.
SANWA SUPPLY docking hub
#Grup produk P113479067
Spesifikasi
| Access Method | CSMA/CD |
|---|---|
| Cable Length (m) | About 0.15 |
| Communication Protocol | Full duplex / half duplex |
| Communication Speed | 5Gbps, 480Mbps, 12Mbps, 1.5Mbps (theoretical value) |
| Connector Shape | (PC connection side) USB Type-C |
| Connector Shape-Downstream | USB3.2 Gen1 (USB3.1/3.0) A connector female x 1, USB Type-C connector female x 1 (PD3.0 100W compatible) |
| Connector Shape-Upstream | USB3.2 Gen1 (3.1 / 3.0) Type-C Connector Male |
| Data Transfer Rate | (Theoretical value) 1000, 100, 10 |
| Interface | USB specification Ver3.2Gen1 (USB3.1/3.0) compliant |
| Number of Ports | 2 ports in total |
| Port | [LAN port] RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible, [Video output port] HDMI type A (19pin) female x 1 |
| Power Supply Method | Both self-powered and bus-powered |
| Power Supply Voltage (V) | 5 |
| Set Contents | Instruction manual, cable tie |
| Standard | IEEE802.3(10BASE-T), IEEE802.3u(100BASE-TX), IEEE802.3ab(1000BASE-T) Correspond. |
| Suitable Models | Windows-based (DOS/V) PC, Apple Mac series, Chrome OS-based PC, iPad |
| Supply Current (mA) | 1500 * Maximum per port |
| Supported OS | Windows 11, 10, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, Android 12/11, iPadOS 16-14, ChromeOS |
| Supported Resolution | HDMI: Maximum 3840 x 2160 (4K 60Hz) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationPD compatible: compatible, PD specifications: 100W12V 5A, dual display compatible: compatible
