You can switch and use one set of HDMI display (4K), USB keyboard, and USB mouse on two computers.
It supports up to 4K (3840 x 2160)/30Hz and 4K (4096 x 2160)/30Hz resolutions and can output beautiful, high-definition HDMI signals.
Since this type does not have a keyboard/mouse signal emulation function, it is also compatible with multi-function mice and multi-function keyboards with special drivers. *1, *2, *3, *4 *After switching, it will take a few seconds to recognize the device.
Anyone can easily switch between them with a single button on the main unit.
You don't need to install any software; you can switch between them just by connecting them.
It operates by supplying power from the computer's USB port, so no AC adapter is required. *If the current supplied from your computer is insufficient, please use the included USB power supply cable and supply power from a separate USB-AC adapter (5V 1A or more).
Connection only via HDMI is also possible. (Keyboard and mouse are not connected. Power must be supplied from a separate USB-AC adapter.)
*The USB hub port installed on the keyboard cannot be used via this product. *It may not work with keyboards with fingerprint authentication function, keyboards with trackpads, etc. *Not compatible with Bluetooth keyboards and Bluetooth mice. *Keyboards with N-key rollover function, such as gaming keyboards, are not supported. *HDMI/High-Definition Multimedia Interface and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

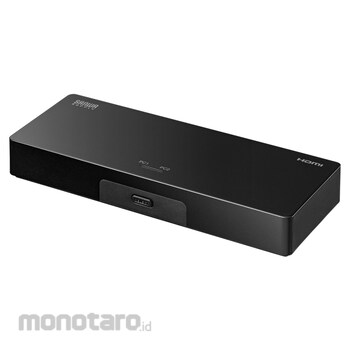

SANWA SUPPLY Computer automatic switching device
#Grup produk P113473629
Spesifikasi
| Current Consumption (mA) | 150 (max) |
|---|---|
| Interface | (PC side) Display: HDMI (Type A) female x 2, USB 2.0 A connector female x 2, (Peripheral device side) Display: HDMI (Type A) female x 1, Keyboard: USB 2.0 A connector female x 1 , Mouse: USB2.0 A connector female x 1 |
| Maximum number of connections | PC: 2 |
| Operating Temperature/Humidity Range | Temperature: 5°C to 45°C, Humidity: 85% or less (no condensation) |
| Power Supply | Power supply from USB port: DC + 5 V *If power supply is not enough, use the included dedicated power supply cable. |
| Set Contents | Switch (main unit) x 1, HDMI cable for PC connection (1.5m) x 2, USB cable for PC connection (1.0m) x 2, dedicated power supply cable (1.0m) x 1, instruction manual (with warranty) |
| Shape | Deferred type |
| Suitable Models | Windows-equipped (DOS/V) PC, Apple Mac series (USB A connector female, model with HDMI output), USB keyboard, USB mouse, TV/PC display equipped with HDMI input terminal as standard |
| Supported OS | Windows11,10,8.1,8,macOS(Ventura) 13,macOS(Monterey) 12,macOS(BigSur) 11,macOS 10.12~10.15 |
| Supported Resolution | 4096x2160(30Hz,4:4:4)3840x2160(30Hz,4:4:4)3840x2160(30Hz,4:2:2)1920x1080p(24/25/30/50/60Hz)1920x1080i(50/60Hz)1280x720p(50/60Hz)720x576p(50Hz)720x480p(60Hz) |
| Switching Method | Body button switching |
| Temperature / Humidity Range for Storage | Temperature: 0°C to 45°C, Humidity: 80% or less (no condensation) |
| Video Output | HDMI |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationDisplay emulation function: None, 19-inch mount rack installation: None, HDCP: HDCP2.3 compliant (pass-through)
