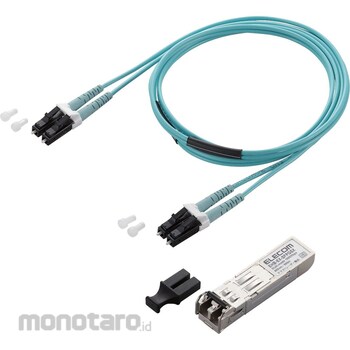

ELECOM SFP module + 1000BASE-SX + optical transceiver + heat resistance 50 °C compatible + 3 year warranty + EHB-EX-SFP GSX
#Grup produk P113439069
Spesifikasi
| Applicable Standard | VCCIClassB |
|---|---|
| Communication Speed | 1000Mbps |
| Conform to | [Switching Hub] EHB-SG2B08, EHB-SG2B08-PL, EHB-SG2B16, EHB-SG2B16F-PL, EHB-SG2B24, EHB-SG2B24F-PL (as of August 2016), [NAS] - |
| Connector Shape | 2-core LC connector |
| Emission waveLength (N.m) | 850 |
| Included Accessories | For safe use: 1 sheet |
| Input Voltage (V) | 3.3 |
| MTBF (hour) | 1362000 |
| Mass (g) | About 16 |
| Network Type | IEEE802.3z |
| Number of Ports | 1 port |
| Operating Environment | Temperature: 0°C to 50°C Humidity: 5% to 95% (no condensation) |
| Outer Dimensions (mm) | About 56.6 x 14.6 x 13.4 |
| Rated Power Consumption (W) | 0.82 max |
| Suitable Cable | 50/125μm GI type multimode optical fiber cable (LC connector), 62.5/125μm GI type multimode optical fiber cable (LC connector) |
| Temperature/Humidity Range for Storage | -40 to 85°C/5 to 95% (no condensation) |
| Transmission distance (m) | 550 |
| Type of Connection | 1000BASE-SX |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is an SFP module exclusively for corporate network products that comply with 1000BASE-SX standards. By inserting it into the SFP port on the product, you can communicate using a fiber optic cable. By using a 2-core LC connector multimode fiber optic cable, the transmission distance can be extended up to 550m. This product is "50°C compatible" and "3-year warranty" just like the corporate products you use it with.
Feature
SpecificationOptical Transmit Level: Maximum -4dBm, Minimum -9.5dBm, Optical Receive Level: Maximum 0dBm, Minimum -18dBm
