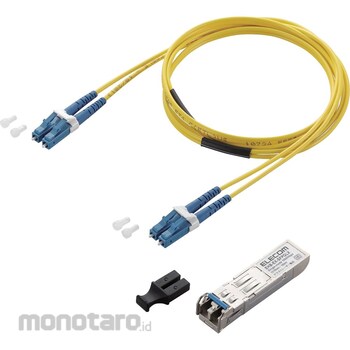

This is a 1000BASE-LX compliant SFP module for corporate network products. By plugging it into the SFP port on the product, you will be able to communicate using an optical fiber cable. This product is "50 ° C compatible" and "3-year warranty" like the corporate products you use.
This is a 1000BASE-LX compliant SFP module for corporate network products.
By plugging it into the SFP port on the product, you will be able to communicate using an optical fiber cable.
The transmission distance can be extended up to 10km by using a single-mode fiber optic cable with a 2-core LC connector.
This product is "50 ° C compatible" and "3-year warranty" like the corporate products you use.
ELECOM SFP module + 1000BASE-LX + optical transceiver + heat resistance 50 °C compatible + 3 year warranty + EHB-EX-SFP GLX
#Grup produk P113439041
Spesifikasi
| Applicable Standard | VCCIClassB |
|---|---|
| Communication Speed | 1000Mbps |
| Conform to | [Switching Hub] EHB-SG2B08, EHB-SG2B08-PL, EHB-SG2B16, EHB-SG2B16F-PL, EHB-SG2B24, EHB-SG2B24F-PL (as of August 2016), [NAS] - |
| Connector Shape | 2-core LC connector |
| Emission waveLength (N.m) | 1310 |
| Included Accessories | For safe use: 1 sheet |
| Input Voltage (V) | 3.3 |
| MTBF (hour) | 1271000 |
| Mass (g) | About 17 |
| Network Type | IEEE802.3z |
| Number of Ports | 1 port |
| Operating Environment | Temperature: 0°C to 50°C Humidity: 5% to 95% (no condensation) |
| Outer Dimensions (mm) | About 56.6 x 14.6 x 13.4 |
| Rated Power Consumption (W) | 0.82 max |
| Suitable Cable | 9/125μm SM type single mode optical fiber cable (LC connector) |
| Temperature/Humidity Range for Storage | -40 to 85°C/5 to 95% (no condensation) |
| Transmission distance | 10km |
| Type of Connection | 1000BASE-LX |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationOptical Transmit Level: Maximum -3dBm, Minimum -9.5dBm Optical Receive Level: Maximum -3dBm, Minimum -20dBm
