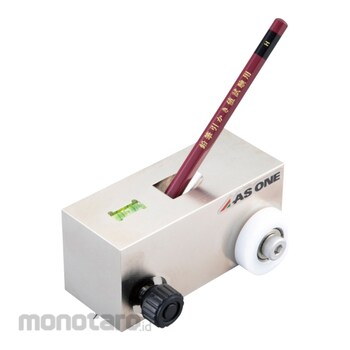

This tester complies with JIS K5600. It is designed to hold a pencil at a 45-degree angle and apply a 750g load to the tip, and measures hardness and adhesive strength based on the hardness at which a scratch is created when the pencil is caught. This tester measures the hardness of coating films. A spirit level is built into the main unit.
*Pencil not included.
AS ONE Pencil scratch hardness tester
#Grup produk P112992905
Spesifikasi
| AS ONE Part Number | 4-4562-01 |
|---|---|
| Load (g) | (pencil tip) 750±10 |
| Mass (kg) | About 1.9 |
| Material | Surface treatment S45C (electroless nickel plating) |
| Offset Angle (°) | (pencil) 45±1 |
| Size (mm) | 74x110x55 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Pencil not included.Feature
This tester complies with JIS K5600. It is designed to hold a pencil at a 45-degree angle and apply a 750g load to the tip, and measures hardness and adhesive strength based on the hardness at which a scratch is created when the pencil is caught. This tester measures the hardness of coating films. A spirit level is built into the main unit.Ulasan Produk
