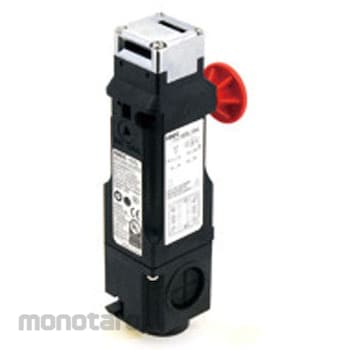

IDEC Safety switch with HS5L solenoid (4-contact Type)
#Grup produk P112507716
Sebelum PPN:
Rp2.999.900 - Rp3.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cable | One stranded or solid wire of 0.3mm² to 1.5mm² or AWG22 to AWG16 |
|---|---|
| Conditional Short-Circuit Current | 50A(250V) |
| Conduit Size | M20 |
| Electric Shock Protection Class | Class II(IEC61140) |
| Electrical Durability | 100,000 times or more (operation frequency 900 times/hour), 2 million times or more (AC/DC24V . 100mA) |
| Insulation Resistance (MΩ) | Charging metal part-non-charging metal part: 100 or more (at DC500V megger), between opposite terminals: 100 or more (at DC500V megger) |
| Maximum operating frequency | 900 times / hour |
| Mechanical Durability | More than 2 million times (operation frequency 900 times/hour, actuator insertion/removal, solenoid operation), more than 100,000 times when using HS9Z-SH5/EH5L/DH5 type (actuator insertion/removal) |
| Operating Force | Direct opening: 120N or more |
| Operating Temperature/Humidity Range | 2.5 |
| Pollution Degree (Environment to Use) | 3 |
| Protection Class | IP67(IEC60529)Type 4X Indoor Use Only |
| Rated Impulse Withstand Voltage (kV) | 2.5 (LED, between solenoid and ground: 0.5) |
| Rated Insulation Voltage (V) | 250 (LED, between solenoid and ground: 30) |
| Rated operating voltage (V) | 30/125/250 |
| Relative Humidity | 20 to 95% RH (no condensation) |
| Specification | Type and coding level: Type 2 Interlocking device Low Level Coded (EN ISO 14119), Actuator operating speed: 0.05 to 1 m/s |
| Storage Temperature Range (°C) | -40 to 80 (no icing) |
| Tensile Strength (N) | Actuator when locked: Fzh=1400 or more (GS-ET-19) However, when using HS9Z-A55 type, Fzh=500 or more |
| Vibration Resistance (Destruction) | 30Hz, single amplitude: 1.5mm or more |
| Vibration Resistance (Malfunction) | 10 to 55Hz, single amplitude: 0.35mm or more |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
A 4-contact type safety switch with a solenoid that is ideal for applications where installation space is limited, such as small doors.Ulasan Produk
