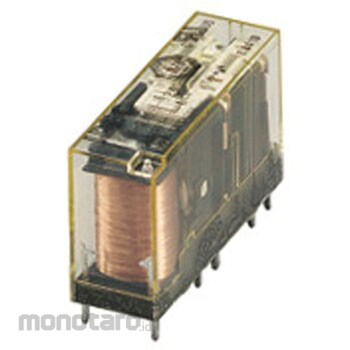

IDEC RF1V Series
#Grup produk P112506498
Sebelum PPN:
Rp2.799.900 - Rp3.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Contact Material | AgSnO2(Au flash) |
|---|---|
| Insulation Resistance (MΩ) | 1000 or more (measured at the same point as in the withstand voltage section with a 500V DC megger) |
| Maximum Allowable Contact Current (A) | 6 |
| Maximum Allowable Contact Voltage (V) | AC250/DC125 |
| Maximum Permissible Voltage (V) | 110% [operating characteristics (at 20°C for rated value)] |
| Maximum operating frequency | 1200 times/hour at rated load |
| Mechanical Durability | Over 10 million times (opening and closing frequency 10,800 times/hour) |
| Minimum Applicable Load | DC5V . 1mA (reference value) |
| Minimum Operating Voltage | 75% or less (initial value) [operating characteristics (at 20°C against rated value)] |
| Rated Load | AC250V/6A, DC30V/6A (resistive load) |
| Return Time | [at 20°C] 20ms or less (when rated operating voltage is applied, not including contact bounce, without diode) |
| Return Voltage | 10% or more (initial value) [operating characteristics (at 20°C for rated value)] |
| Shock Resistance (m/s²) | [Malfunction (half-sine pulse: 11 ms)] 200, when mounted on DIN rail socket: 150, [Durability (half-sine pulse: 6 ms)] 1000 |
| Storage Temperature (°C) | -40 to 85 (but do not freeze) |
| Type | Safety relay |
| Vibration Resistance | Malfunction: Frequency 10 to 55Hz, single amplitude 0.75mm, Durability: Frequency 10 to 55Hz, single amplitude 0.75mm |
