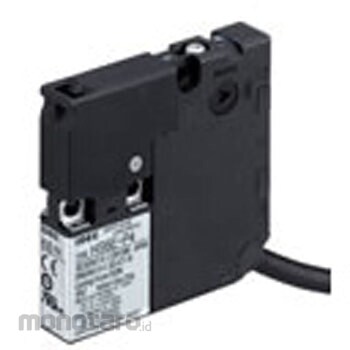

IDEC HS6E Type safety switch with solenoid
#Grup produk P112502173
Sebelum PPN:
Rp3.799.900 - Rp4.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cable | UL2464 No.22AWG (12 cores, 0.3mm² equivalent/core) |
|---|---|
| Color (Body) | Black |
| Conditional Short-Circuit Current | 50A (250V) [Uses a 250V, 10A fast acting fuse as a short circuit protection device] |
| Electric Shock Protection Class | Class II(IEC61140) |
| Electrical Durability | 100,000 times or more (AC-12250V/6A), 1 million times or more (AC/DC24V/100mA) (operation frequency 900 times/hour) |
| Insulation Resistance (MΩ) | Charging section-non-charging section: 100 or more (at DC500V megger), Between different polarity charging sections: 100 or more (at DC500V megger) |
| Mechanical Durability | Over 1 million times (GS-ET-19) |
| Operating Force | Direct opening: 60N or more |
| Operating Temperature/Humidity Range | [Ambient temperature -25°C or higher but lower than 35°C] 2.5 (up to 2 circuits) / 1.0 (3 circuits or higher), [Ambient temperature 35°C or higher but lower than 50°C] 1.0 (1 circuit) / 0.5 (2 circuits or higher) |
| Pollution Degree (Environment to Use) | 3 |
| Protection Class | IP67(IEC60529) |
| Rated Impulse Withstand Voltage (kV) | Main, lock monitor circuit: 1.5/door monitor circuit: 2.5/LED, solenoid-ground: 0.5 |
| Rated Insulation Voltage (V) | 300 (door monitor circuit), 150 (lock monitor circuit), 30 (LED, between solenoid and ground) |
| Rated Voltage (V) | Indicator light: DC24 |
| Relative Humidity | 45 to 85% (with no condensation) |
| Storage Temperature Range (°C) | -40 to 80 (no icing) |
| Tensile Strength (N) | Actuator when locked: 500 or more (GS-ET-19) |
| Type | Standard type |
| Vibration Resistance (Destruction) | 30Hz, single amplitude: 1.5mm |
| Vibration Resistance (Malfunction) | 10-55Hz, single amplitude: 0.35mm |
