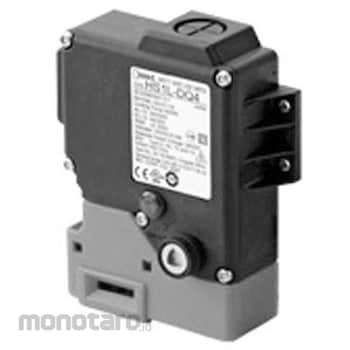

IDEC HS1L Series
#Grup produk P112501572
Sebelum PPN:
Rp3.699.900 - Rp4.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Applicable Standard | ISO14119, IEC60947-5-1, EN60947-5-1 (TUV certified), GS-ET-19 (TUV certified), UL508 (UL listing certified), CSA C22.2 No. 14 (c-UL listing certified), GB/T14048.5 (CCC certified), Application standards: IEC60204-1/EN60204-1 |
|---|---|
| Color (Body) | Red / black |
| Conditional Short-Circuit Current | 100A(250V) |
| Electric Shock Protection Class | Class II(IEC61140) |
| Electrical Durability | 100,000 times or more (AC-15 3A/250V), 1 million times or more (AC/DC24V . 100mA) (operation frequency 900 times/hour) |
| Insulation Resistance (MΩ) | Live metal part - non-charged metal part: 100 or more (at 500V DC megger) / Between different polarity live parts: 100 or more (at 500V DC megger) |
| Lock Strength | 3000N |
| Maximum operating frequency | 900 times / hour |
| Mechanical Durability | Over 1 million times (GS-ET-19) |
| Operating Force | Direct open circuit: 50N or more |
| Operating Temperature/Humidity Range | 10 |
| Pollution Degree (Environment to Use) | 3 |
| Protection Class | IP67(IEC60529) |
| Rated Impulse Withstand Voltage (kV) | 4 (LED, between solenoid and ground: 1.5) |
| Rated Insulation Voltage (V) | 300 |
| Rated Voltage (V) | Indicator light: DC24 |
| Relative Humidity | 45 to 85% (with no condensation) |
| Specification | Actuator operation speed: 0.05 to 1 m/s |
| Storage Temperature Range (°C) | -40 to 80 (no icing) |
| Tensile Strength (N) | Actuator when locked: 3000 or more (GS-ET-19) |
| Vibration Resistance (Destruction) | 30Hz, single amplitude: 1.5mm |
| Vibration Resistance (Malfunction) | 10-55Hz, single amplitude: 0.35mm |
| Voltage (V) | DC24 |
