Informasi Produk
Feature

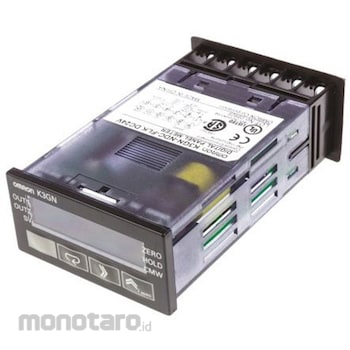

UL, CSAProcess panel meter Backlit 7mm high 5 digital LCD display (-19999 → 99999) Configurable analog inputs: 4 → 20 mA, 0 → 20 mA, 1 → 5 V dc, -5 → +5 V dc, -10 → +10 V dc. All fully expandable and can be configured to show a wide range of engineering inputs Supply voltage: 24 V dc
Non-voltage, open collector inputs ideal for sensors, encoders and pulse inputs from 0.05 to 30 Hz and 0.1 to 5000 Hz All inputs can be easily scaled with upper and lower limit settings and content indication automatically linearized to the required scale Accurate to ±0.1% full scale Front panel protected to NEMA 4 (IP66) rating Programmable display that changes colour when outputs are activated or deactivated Panel cut-out: 45 x 22.2 mm Dimensions: H24 mm x W48 mm x D83 mm, depth behind panel: 80 mm CE marked to meet all current European noise and emissions regulations
