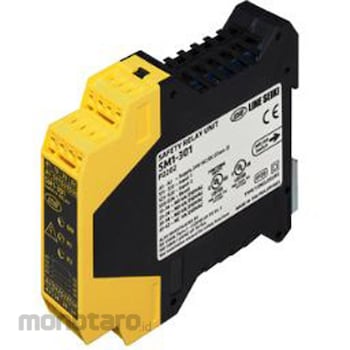

Line Seiki safety relay unit
#Grup produk P112435260
Spesifikasi
| Applicable Standard | ISO 13849-1, IEC 60204-1, IEC 61508-1, IEC 61508-2, IEC 62061, IEC 61326-1, IEC 61326-3-1, IEC 60068-2-1, IEC 60068-2-2, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-5-1, CE, RoHS |
|---|---|
| Auxiliary Output | NC contact x 1 (AC250V 5A (resistive load) / AC250V 5A (inductive load) / DC24V 5A (inductive load)) |
| Contact | AgSnO<sub>2</sub> |
| Input | Number of input channels: NO input x 2 channels Input current: 166Aa x each channel |
| MTTF (hour) | >100 years |
| Mass (g) | About 180 |
| Outer Dimensions (mm) | 100×23×114 |
| Output | NO output x 3 (AC250V 6A (resistive load) / AC250V 5A (inductive load) / DC24V 5A (inductive load)) |
| Performance Level | PLe (safety category 4), SIL3 |
| Power Consumption (VA) | 5VA (AC) 2.5W (DC) |
| Power Supply Voltage | AC / DC24V (-15%/+10%) |
| Protection Class | IP20 |
| Protection circuit | electronic fuse |
| Rated power supply voltage | DC5V 10mA |
| Response Time | 20 ms or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
*Please use a power supply unit that is compliant with Safety Extra Low Voltage (SELV) or Protective Extra Low Voltage (PELV).Feature
Space-saving type with a width of 23 mm. Applicable to safety category 4 environments.Up to 25 SS4 series units can be connected in series (even when multiple connections are made, it can be applied to environments up to safety category 4)
Equipped with 3 safety output (NO) circuits that can monitor the contacts of emergency stop switches and limit switches (forced guide contact mechanism)
