Overview
- 24-bit high-resolution encoder installed
- High efficiency, low heat generation
- Downsizing by up to 20%
- Flange compatible with Sigma-5
- Medium inertia, low speed, high torque

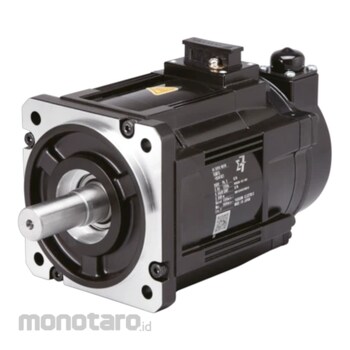

Yaskawa Sigma-7 Servomotor Packed with Performance
#Grup produk P112296388
Spesifikasi
| Input power supply (V) | 200 |
|---|---|
| Rated Output (kW) | 4.4 |
| Shaft End | Straight with key and tap |
| Encoder Type | Incremental |
| Height (mm) | 224 |
| Allowable Load Moment of Inertia (times) | 5 |
| Depth (mm) | 263 |
| Encoder Resolution (bit) | 24 |
| Flange Diameter (mm) | 200 (LA) |
| Flange Dimensions (mm) | 180 (LC) |
| Instantaneous Maximum Torque (N m) | 71.6 |
| Maximum Motor Speed (rpm) | 3000 |
| Motor Moment of Inertia (kg.m²) | 67.5 x10⁻⁴ |
| Rated Motor Speed (rpm) | 1500 |
| Rated Torque (N m) | 28.4 |
| Shaft End Diameter (mm) | 35 (S) |
| Shaft End Length (mm) | 110 (Q) |
| Width (mm) | 180 |
