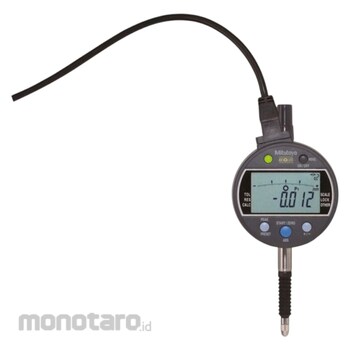

This is a measuring instrument that outputs a pass/fail result for the detected position data. There is no contact deterioration like with mechanical electrical contact methods.
The output can be directly connected to an external device (such as a sequencer) for use. (Output logic inversion is also possible.) The judgment result is also displayed on the LCD and two-color LED.
This measuring instrument is equipped with a peak detection function, and can also make pass/fail judgments based on peak values and fluctuation ranges.
Position detection is by the ABS (absolute) method, which has an absolute origin, so there is no need to align the origin each time the power is turned on, and there is no risk of overspeed errors.
Mitutoyo Signal Digimatic Syndicator Input Tool (RS-232C) Foot Switch Set
#Grup produk P112277745
Spesifikasi
| Measuring Force (N) | 2.5 or less |
|---|---|
| Measuring Range (mm) | 12.7 |
| Minimum Reading (mm) | 0.001/0.01 (switchable) |
| Power Supply | External power supply (DC 5-24V) |
| Repeatability (mm) | 0.002 |
| Return Error (mm) | 0.002 |
