Chassis Mount Frame 75VA to 200VA
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA
Chassis Mount Frame 75VA to 200VA
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA(503-928)
Standards
BS3535; EN 60 742

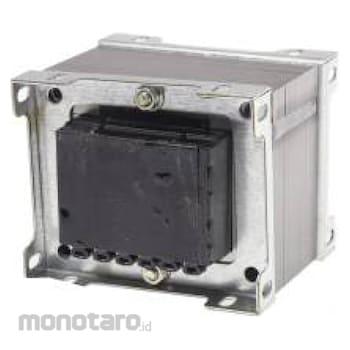

RS PRO Chassis Mounting Transformer
#Grup produk P112205623
Spesifikasi
| Depth (mm) | 65 |
|---|---|
| Dimensions (mm) | 79x75x65 |
| Efficiency (%) | 86 |
| Fixing Hole Diameter (mm) | 4.7x7.9 |
| Length (mm) | 79 |
| Maximum Operating Frequency (Hz) | 60 |
| Maximum Temperature (°C) | (Ambient) 70 |
| Minimum Operating Frequency (Hz) | 50 |
| Minimum Temperature (°C) | -30 |
| Mounting Type | Chassis |
| Number of Outputs | 2 |
| Power Rating (V/A) | 75 |
| Primary Voltage Rating (V) | 230AC |
| Primary Winding Resistance (Ω) | 22 |
| Secondary Voltage Rating (V) | 9 AC |
| Standards Met | IEC 61558-2-6 |
| Width (mm) | 75 |
