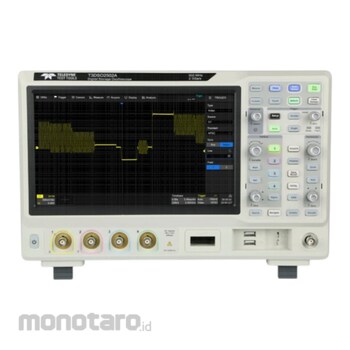

Teledyne LeCroy T3DSO2204A Bench Digital Storage Oscilloscope, 200 MHz, 4 Channels
Product Description
Teledyne LeCroy's T3DSO2204A Oscilloscope is a four channel model with an analog bandwidth of 200 MHz. The T3DSO2204A offers a maximum sample rate of 2 GSa/s, and a maximum memory depth of 200 Mpts in half channel mode. The T3DSO2204A incorporates two 2 GSa/s ADCs and two 200 Mpts memory modules. When all channels are enabled, each channel has a sample rate of 1 GSa/s and a standard record length of 100 Mpts. When only a single channel per ADC is active, the maximum sample rate is 2 GSa/s and the maximum record length is 200 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.
Accessories
MSO lead set - 177-1288
Replacement passive probes - 177-1275, 215-1115, 851-3100
Teledyne LeCroy Bench Oscilloscope T3DSO2000A Series
#Grup produk P112154091
Sebelum PPN:
Rp129.999.900 - Rp239.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Digital/Analog | Digital |
|---|---|
| Maximum Vertical Sensitivity (mV/div) | 0.5 |
| Memory Depth (Mpts) | 200 |
| Minimum Vertical Sensitivity (V/div) | 10 |
| Number of Analogue Channels | 4 |
| Oscilloscope Form | Digital Storage |
| Oscilloscope Type | Bench |
| Power Source | Mains |
| Sample Rate Random (Gsps) | 2 |
| Screen Size (inch) | 10.1 |
| Series | T3DSO2000A |
| Vertical Resolution (bit) | 8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Long Capture-100 Mpts/Ch and 200 Mpts interleavedMath and Measure-9 basic math functions plus FFT and 50+ automatic measurement parameters
Connectivity-USB for mass storage, printing and PC control, plus LAN for fast data transfer
Includes Serial Bus Trigger and Decode -I2C, SPI, UART, CAN, LIN as standard.
Optional CAN FD, I2S, MIL- 1553B, FlexRay
Includes Bode Plot, 50MHz Function Generator and Power Analysis applications as standard
Optional MSO-16 Digital Channels
Waveform Sequence Recorder-record and play back up to 90,000 waveforms
Use
EducationElectronic Design
Automotive
Engineering
System Debug
