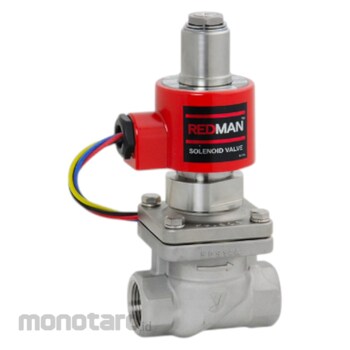

Yoshitake Piston Type Solenoid Valve (Screw Type) DP-100-C
#Grup produk P111933057
Sebelum PPN:
Rp10.999.900 - Rp18.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Applicable Pressure Range (MPa) | 0 to 1.0 (vacuum cannot be used) |
|---|---|
| Connector | JIS Rc |
| Fluid | Steam, cold / hot water, air, nitrogen gas, carbon dioxide gas (dry state), argon gas, A heavy oil, B heavy oil, kerosene, light oil (20 cSt or less) |
| Handle Type | Without handle |
| Kinds | Solenoid Valve |
| Material (Valve Box) | Stainless steel SCS |
| Material (Valve Member) | Stainless steel SCS |
| Material (disc) | Fluorine resin (PTFE) |
| Minimum Operating Pressure Differential (MPa) | 0 (Differential pressure of 0.03 or more is required for horizontal coils) |
| Operating Temperature Range (°C) | 5 to 180 (no freezing) |
| Operation | Closed when energized |
| Rated Voltage (V) | 100/200 AC/connection method selection type (50/60 Hz common) |
| Shape | Straight |
| Voltage (V) | 100/200 AC/connection method selection type (50/60 Hz common) |
| format | Piston type |
