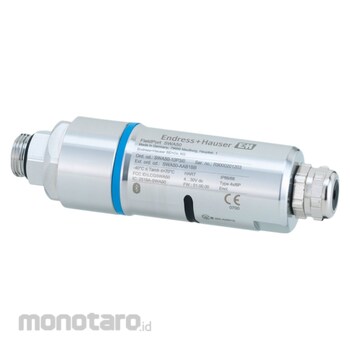

FieldPort SWA50
SWA50-AAA1AA
Intelligent Bluetooth® and/or WirelessHART adapter for all HART field devices
Operating Voltage
24 V DC (min. 4 V DC, max. 30 V DC): min. 3.6 mA loop current required for start-up
Voltage drop if internal HART communication resistor is deactivated:
3.2 V in operation, < 3.8 V at start-up
Voltage drop if internal HART communication resistor is activated (270 Ohm):
< 4.2 V at 3.6 mA loop current, < 9.3 V at 22.5 mA loop current
Endress Hauser FieldPort SWA50 Series Sensor Hub
#Grup produk P111927375
Spesifikasi
| Auxiliary Power Supply/Loop Power Supply (mA) | Loop-powered 4 to 20 |
|---|---|
| Certification | Non-hazardous area, ATEX, IEC Ex |
| Dimensions (WxHxD) (mm) | 146x42x42 |
| Function | Intelligent WirelessHART and/or Bluetooth® interface module for easy and fast connection to HART devices |
| Input | One point-to-point with HART device |
| Measuring Principle | WirelessHART |
| Measuring/Application Task | Wireless components |
| Operation | Integral via DIP-switches, Cell Phone configuration via SmartBlue App and Bluetooth®, Field Xpert configuration via Bluetooth® or HART-modem, PC configuration via FieldCare and HART-modem, PC configuration via FieldCare and WirelessHART Gateway |
| Output | WirelessHART and/or Bluetooth® communication interface, Operating frequency: 2.4 GHz (ISM band), Transmission range under reference conditions: WirelessHART communication - up to 200 m (656 ft), Bluetooth communication - up to 40 m (131 ft) |
| Software | Internal software for reading data from HART field devices and communicating over WirelessHART and/or Bluetooth® |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Reliable transmission of the measured process values through the connected FieldPort SWA50 via encrypted Bluetooth® or WirelessHART communicationEasy to retrofit all 2-wire or 4-wire HART field devices
Easy connection of all HART field devices to the Netilion Cloud
Loop-powered adapter, without affecting the process signal
Easily accessible, wireless, diagnostic information of connected HART field device
Use
Field of applicationThe FieldPort SWA50 converts the HART signal of the connected HART field device to a reliable and encrypted Bluetooth® or WirelessHART signal. The Endress+Hauser SmartBlue app or the Endress+Hauser Field Xpert is used to configure the FieldPort SWA50 and to visualize the measured values and status of the connected HART field device. HART field devices can be connected to the Netilion Cloud via the FieldPort SWA50 and a FieldEdge device.
The FieldPort can be retrofitted to all 2-wire and 4-wire HART field devices in both hazardous and non-hazardous areas. The robust stainless steel housing allows the FieldPort SWA50 to be installed even in harsh industrial environments.
