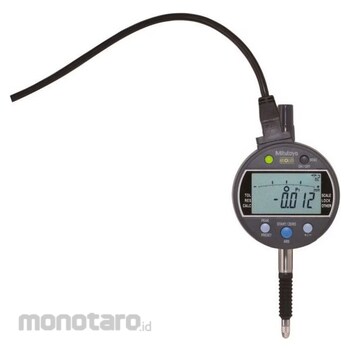

Mitutoyo Signal Digimatic Indicator
#Grup produk P111525007
Spesifikasi
| Indication error for the entire measuring range (mm) | 0.003 |
|---|---|
| Measuring Force (N) | 2.5 or less |
| Measuring Range (mm) | 12.7 |
| Minimum Reading (mm) | 0.001/0.01 (switchable) |
| Power Supply | DC5-24V (external power supply) |
| Protection Class | IP54 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Repeatability (mm) | 0.002 |
| Return Error (mm) | 0.003 |
| Series | 543 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Products that include (with English version calibration certificate) in the product number will be calibrated at a calibration point based on the standards of an external calibration company based on the ISO quality management system, and will be shipped after the document is issued.Feature
- This is a measuring device that outputs pass/fail judgment results for detected position data. There is no contact deterioration like with mechanical electrical contact methods.- The output can be used by directly connecting to external equipment (sequencer, etc.). (Output logic inversion is also possible.) Judgment results are also displayed on the LCD display and two-color LED.
- This measuring instrument has a peak detection function and can also make pass/fail judgments based on peak values and swing amplitudes.
- Position detection is an ABS (absolute) method with an absolute origin, so there is no need to adjust the origin every time the power is turned on, and overspeed errors do not occur.
