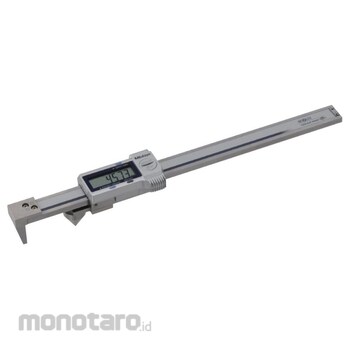

Mitutoyo Digimatic Back Jaw Single Hole Pitch Nogisu
#Grup produk P111524424
Spesifikasi
| Allowable Tolerance (mm) | Max. ±0.10 |
|---|---|
| Depth Bar | None |
| Included Accessories | One SR44 (No.938882) button-type silver oxide battery (The button-type silver oxide battery included in the standard kit is for monitoring purposes only.) |
| Instrumental Error (mm) | ±0.10 |
| Maximum Response Speed | Unlimited |
| Measuring Range (mm) | 10.1-200 |
| Minimum Reading (mm) | 0.01 |
| Mistutoyo Product No. | 573-718-20 |
| Position Detection Method | Electromagnetic induction type absolute encoder |
| Power Supply | One SR44 button-type participating silver battery (No.938882) (included as standard for monitoring) |
| Protection Class | IP67 |
| Quantization Error | Does not include ± 1 count |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Series | 573 |
| Type | End face-hole center distance measurement |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Only orders can be placed via the website.- Products that include (with English version calibration certificate) in the product number will be calibrated at a calibration point based on the standards of an external calibration company based on the ISO quality management system, and will be shipped after the document is issued.
Feature
A jaw is attached to the back of the display, so you can quickly measure the distance between the end face and the center of the hole with the hole facing forward. Equipped with offset and preset functions, allowing direct reading of measured values.Ulasan Produk
