Threaded cylinders are designed for workpiece positioning, holding and ejecting applications where space is at a premium.
Doubleacting models are also suited to manufacturing applications, such as production punching

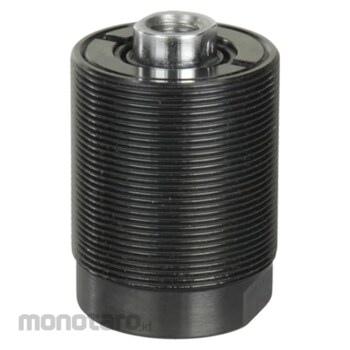

Enerpac Threaded Cylinder
#Grup produk P111367315
Spesifikasi
| Return Type | Single Acting |
|---|---|
| Maximum Cylinder Capacity Advance (kN) | 17.2 |
| Maximum Operating Pressure (bar) | 250 |
| Stroke (mm) | 25 |
| Cylinder Effective Area Advance (cm²) | 5.10 |
| Oil Capacity Advance (cm³) | 12.74 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Minimum cylinder diameter combined with maximized clamping forces Threaded body allows fine positioning and easy installation
Internal plunger wipers allow maintenance-free, high-cycle performance
Center-tapped plungers will hold workpiece contact buttons
Single-acting models with spring return simplify hydraulic tubing requirements
