X-heavy duty Shaft encoder, Incremental
- Heavy duty incremental encoder
- 6 short-circuit protected outputs
- 9-30 Vdc polarity protected power supply
- 4 programmable relays
- Programmable level: Standstill - 6000 rpm
- Overspeed, underspeed, standstill and direction

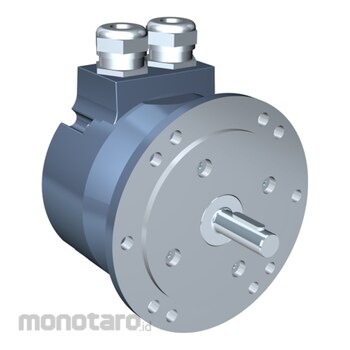

Leine Linde X-Heavy Duty Shaft Encoder
#Grup produk P111308765
Spesifikasi
| Connecting Direction | Radial |
|---|---|
| Connection Type | 2 x Cable gland |
| Cover Material | Aluminium (Coated) |
| Current Consumption (mA) | (No load) 60 at 24Vdc (Max. 80) |
| Flange type | Euro-Flange (B10-type) |
| Incremental Output Load (mA) | Max. ± 40 |
| Ingress Protection Class (IEC 60529) | IP67 (IP66 at Shaft Inlet) |
| Maximum Rotation Speed (rpm) | 6000 |
| Maximum Shaft Load (N) | 500 (Axial)/1200 (Radial) |
| Model | 850 |
| Number of Channels | 6 (S00, S00\\, S90, S90\\, Sref, Sref\\) |
| Operating Temperature (°C) | -20...+100 |
| Output Frequency (kHz) | Max. 200 |
| Power Supply (Vdc) | 9-30 |
| Resolution (PPR) | 1024 |
| Shaft Material | Stainless Steel |
| Shaft Type (mm) | 11 with Key Nut |
| Shock | ≤ 400g, 3.5ms (IEC 60068-2-27) |
| Type | XSI |
| Vibration | ≤ 20g, 55-2000Hz (IEC 60068-2-64) |
