Schneider Standard Control Unit
#Grup produk P111157958
Spesifikasi
| Control Circuit Voltage (V DC) | 24 |
|---|---|
| Control circuit voltage limits (V DC) | 20 to 27 for DC circuit 24 V in operation, 14.5 V for DC circuit 24 V drop-out |
| Current consumption (mA at 24 V DC, rms sealed) | 60 with LUB12, 80 with LUB32, 80 with LUB38 |
| Dimensions (HxWxD) | 66x45x60 |
| Heat Dissipation (W) | 2 for LUB12, 3 for LUB32, 3 for LUB38 |
| Load Type | 3-phase motor - cooling: self-cooled |
| Motor Power (kW) | 5.5 at 400 to 440 V AC 50/60 Hz, 5.5 at 500 V AC 50/60 Hz, 9 at 690 V AC 50/60 Hz |
| Network Frequency (Hz) | 40 to 60 |
| Operating Time (ms) | 35 ms opening, 70 ms closing with LUB12, 35 ms opening, 70 ms closing with LUB32, 35 ms opening, 70 ms closing with LUB38 |
| Product Certifications | CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine |
| Rated Impulse with Stand Voltage (kV) | 6 (IEC 60947-6-2) |
| Rated Insulation Voltage (V) | 690 (IEC 60947-6-2), 600 (UL 60947-4-1, CSA C22.2 No 60947-4-1) |
| Rated Operational Voltage (V AC) | 690 |
| Rated motor current adjustment range (A) | 3 to 12 |
| Safe separation of circuit (V) | 400 V SELV between the control and auxiliary circuits, between the control or auxiliary circuit and the main circuit (IEC 60947-1) |
| Standards | EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1 with phase barrier, CSA C22.2 No 60947-4-1 with phase barrier |
| Thermal Overload Class | Class 10 - frequency limit: 40…60 Hz - temperature compensation: -25…70 °C (IEC 60947-6-2), Class 10 - frequency limit: 40…60 Hz - temperature compensation: -25…70 °C (UL 508) |
| Tripping Threshold | 14.2xIr +/- 20 % |
| Typical current consumption (mA at 24 V DC) | 130 while closing with LUB12, 220 while closing with LUB32, 220 while closing with LUB38 |
| Utilisation Category | AC-43, AC-44, AC-41 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

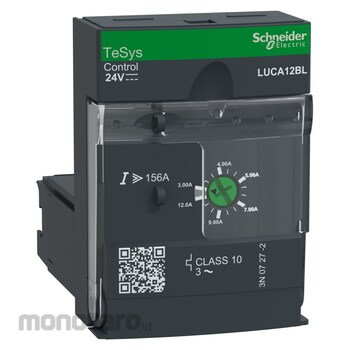

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Feature
- Protection against overload and short-circuit- Control unit includes electronic components and the current adjustment dial
- Modular, plug & play structure helps you to perform quick maintenance
- Direct access to detailed information for every motor starter of your installation
- Advanced motor management system
