MICRO 100 Metalworking Micro Drill Bits
#Grup produk P111150159
Spesifikasi
| Circuit Board Drill | No |
|---|---|
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle (°) | 118 |
| Drill Bit Point Type | Conventional Point |
| Drill Diameter Tolerance (inch) | +0.0000/-0.0005 |
| Finish - Machining | Bright (Uncoated) |
| Flute Type | Spiral |
| Material - Machining | Carbide |
| Material Grade - Machining | C2 |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Shank Type - Machining | Straight |
| Standards | Not Rated |
| UNSPSC | 27112801 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

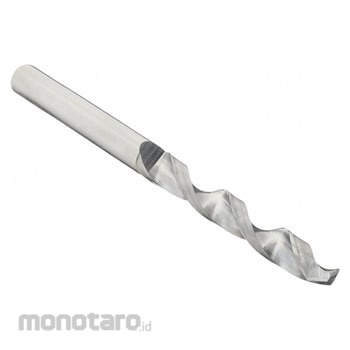

Carbide micro drill bits provide excellent hardness, wear resistance, and heat resistance. They create precise holes with a smooth finish and often eliminate the need for reaming the hole after drilling. Carbide bits require a rigid setup such as a fixed-spindle machine. The bright finish on these drill bits is not affected when the bits' cutting edges are resharpened. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
