A signal processing board that receives the output signal (PWM) of the dust sensor, processes it into an operational state, and converts it.
Dust detection uses a photo detector to detect scattered light by shining light on dust floating in the air.
The measurement result of the averaging time is displayed on a 2-digit LED every second as a percentage of the amount of dust. If it is 10% or less, the number after the decimal point can also be displayed.
Equipped with 3 sets of general-purpose alarm terminals, it can be used for LED display and relay drive (driver circuit required). The serial output also allows the signal to be transmitted to the host system.
- It is possible to detect particles floating in the air of 1 μm or more, but it is not possible to specify the size of the particles.
- Be sure to use the AC adapter attached to the product. Never use a transformer-type destabilized type. Most smartphone chargers with 5V output (USB connector output type) can be used in terms of capacity and rating, but a cord with a terminal shape of 2.1Φ plug and center + is required. Please purchase a commercially available conversion cable.

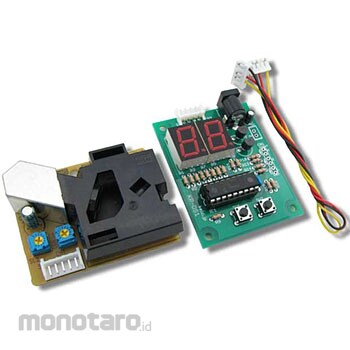

KYOHRITSU PRODUCTS Dust Sensor Board
#Grup produk P110984382
Spesifikasi
| Board Dimensions (WxDxH) (mm) | [Dust sensor part] 60x44x17 (including projections), [Display board] 48x64x15 (including projections) |
|---|---|
| Included Accessories | Dedicated connection cable (about 20cm), AC adapter (DC5V 1A 2.1Φ center (+)) |
| Operating Current (mA) | 150 |
| Output | 2-digit 7-segment LED, alarm output 3 points, serial output |
| Power Supply Voltage (V) | DC5 |
| Sensor | Photo detector |
| Type | Craft kit |
