- HSSE spiral-$ute cutting tap for blind holes
- Steam oxide treatment
- General purpose tapping in steels and stainless steels

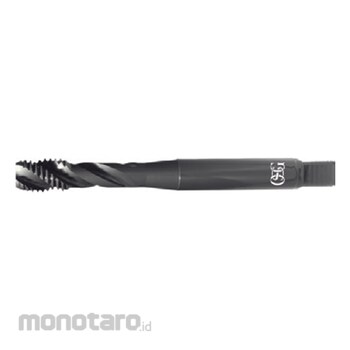

OSG Threading Cutting Tap UNC
#Grup produk P110918769
Kondisi Barang:
Spesifikasi
| Coating | Steam oxid |
|---|---|
| Connection diameter (DCON) (mm) | 9.00 |
| Drive Size (DRVS) (mm) | 7.00 |
| Flute Count (NOF) | 3.00 |
| Material | High Vanadium HSS-EV3 |
| Premachined Hole Diameter (PHD) (mm) | 8 |
| Shank | Reinforced shank (DIN 2184-1), Straight Shank (DIN 2184-1) |
| Standard DIN | 2184-1 |
| Tap Type | Cutting Tap |
| Thread Diameter (TD) (inch) | 3/8 |
| Thread Tolerance | ANSI-2B |
| Thread Type | UNC |
| Thread per Inch | 16 |
| Tool Tolerance | ANSI 2B |
| Usable length (LU) (mm) | 35 |
