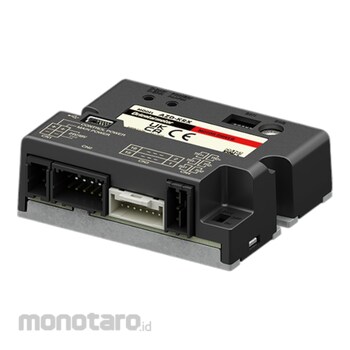

Orientalmotor Stepper Motor Driver
#Grup produk P110910572
Spesifikasi
| Communication Method | Half duplex, asynchronous communication (data: 8 bits, stop bit: 1 bit or 2 bits, parity: none, even, or odd) |
|---|---|
| Driver Type | Closed Loop, Absolute, Pulse Input with RS-485 Communications |
| Electrical Characteristic | EIA-485 Based, Straight Cable; Use a shielded twisted pair cable (TIA/EIA-568B CAT5e or higher is recommended) and keep the total wiring distance. |
| Explicit Communication - Number of Connection | Up to 31 drivers can be connected to a single programmable controller (master device). |
| Interface - Control Input (VDC) | 4.5 to 32; 5 Points, Photocoupler |
| Interface - Control Output (VDC) | 4.5 to 32; 3 Points, Photocoupler/Open Collector |
| Interface - Pulse Input | 2 Points, Photocoupler; Maximum Input Pulse Frequency Line Driver: 1 MHz (50% duty); Open Collector: 250 kHz (50% duty) |
| Power Supply (V DC) | 24/48 |
| Protocol | Modbus RTU Mode |
| Safety Standard | UL CE |
| Transmission Rate (bps) | Select either from 9600, 19200, 38400, 57600, 115200, or 230400. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Pulse driver with RS-485 communications for monitoring such motor actions as position, torque output, speed, alarms, and temperature. Wire the driver up for conventional Pulse and Direction control. Use the RS-485 connection for monitoring back to your host PLC. The αSTEP AZD driver contributes to quick positioning operations over a short distance while providing smooth performance. The AZ Series mini Driver works with a variety of αSTEP AZ Series, DC input products.
