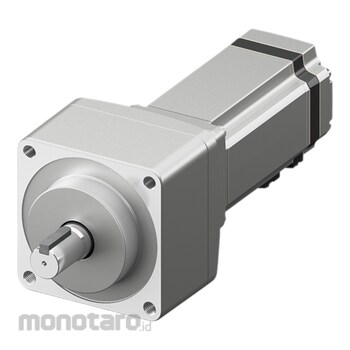

These servo motors are equipped with a battery-free absolute sensor. They are suitable for positioning applications with a large amount of travel, since they achieve high torque in the high speed range.
No External Sensors Required
Battery Free
AZX Series Driver and Connection Cables required
Ambient Temperature (Motor) : 0 - +40°C (32 - 104°F) (non-freezing)
Ambient Humidity : 85% max. (non-condensing)
Operating Atmosphere : No corrosive gases. Must not be exposed to oil or other liquids.
Degree of Protection : IP65 (excluding installation surface and connector locations.)
Shaft Runout : 0.05 T.I.R. (mm)
Concentricity : 0.075 T.I.R. (mm)
Perpendicularity : 0.075 T.I.R. (mm)
Safety Standards : UL; CE
Orientalmotor Servo Motor
#Grup produk P110910475
Spesifikasi
| Backlash | 15 (0.25°) |
|---|---|
| Detector | Mechanical Multi-Turn Absolute Encoder; 1 Turn: 16bit, Multi-Turn: ±900 rotations (1800 rotations) |
| Dielectric Strength | Sufficient to withstand the following for 1 minute; Case Motor Windings 1.5kVAC 50Hz or 60Hz |
| Electromagnetic Brake | Not Equipped |
| Gear Inertia (oz-inch²) | 0.89 |
| Gear Ratio (X:1) | 0.20902777777777778 |
| Gear/Shaft Type | Planetary Gear (PS) |
| Insulation Resistance (Motor) | 100 MΩ min. when measured with a 500 VDC megger between the following locations:Case Motor Windings |
| Maximum Instantaneous Torque (oz-inch) | 2420 |
| Motor Frame Size (inch) | 3.54 |
| Permissible Load Inertia (oz-inch²) | 2016 |
| Permissible Overhung Load (inch) | 0 from Shaft End = 85lb; 0.2 from Shaft End = 94lb; 0.39 from Shaft End = 105lb; 0.59 from Shaft End = 121lb; 0.79 from Shaft End = 141lb |
| Permissible Speed Range (rpm) | 0 to 1100 |
| Permissible Thrust Load (lbs) | 135 |
| Product Line | Oriental Motor® |
| Rated Output Power (W) | 400 (1/2HP) |
| Rated Torque (oz-inch) | 810 |
| Resolution (P/R) | 500 to 50000 (Factory setting 5000) |
| Rotor Inertia (oz-inch²) | 1.61 |
| Thermal Class | 130 (B) |
