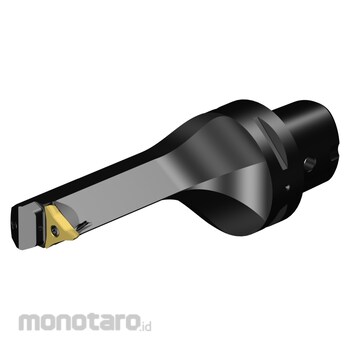

Sandvik CoroTurn Prime Cutting Unit for Y-Axis Turning
#Grup produk P110906223
Spesifikasi
| Body Material (BMC) | Steel |
|---|---|
| Clamping type code (MTP) | S: clamp with screw through hole |
| Connection - Machine Side (ADINTMS) | Coromant Capto (bolt and segment clamping) -size C6 |
| Connection Diameter (DCONMS) (mm) | 63 |
| Coolant Entry Style (CNSC) | 3: axial concentric and radial entry |
| Coolant Exit Style (CXSC) | 7: axial inclined focused exit with nozzle |
| Coolant Exit Type (CXST) | 3: both over and under the cutting edge |
| Coolant Pressure (CP) (bar) | 150 |
| Functional height (HF) (mm) | 0 (zero) |
| Functional length (LF) (mm) | 125 |
| Functional width (WF) (mm) | 0 (zero) |
| Hand (HAND) | L |
| Inclination angle (LAMS) (°) | 0 (zero) |
| Insert Type (CUTINT_MASTER) | CoroTurn PRIME CP-A (CP-A1108) |
| Lead Angle (PSIR) (°) | -27.5 |
| Machine side body angle (BAMS) (°) | 0 (zero) |
| Main Rotation Angle of Tool (MRAT) (°) | 315 |
| Master Insert Identification (MIID) | CP-A1108 |
| Maximum overhang (OHX) (mm) | 125 |
| Maximum ramping angle (RMPX) (°) | 12 |
| Orthogonal rake angle (GAMO) (°) | 0 (zero) |
| Protruding length (LPR) (mm) | 134.6 |
| Tool Cutting Edge Angle (KAPR1) (°) | 117.5 |
| Tool cutting edge angle (KAPR2) (°) | 27.5 |
| Torque (N m) | 4 |
| Usable length (LU) (mm) | 75 |
| Workpiece side body angle (BAWS) (°) | 0 (zero) |
| Xy-Plane Feed Direction (XYPFEEDIR) | Yes |
