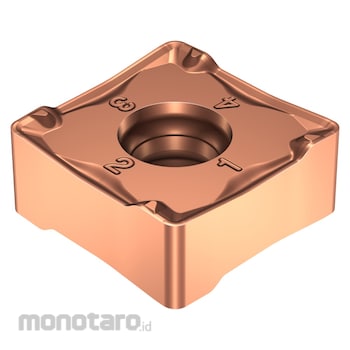

Sandvik CoroMill MF80 Insert for Milling
#Grup produk P110906001
Spesifikasi
| Chip Breaker (CBMD) | M50 |
|---|---|
| Corner Radius (RE) (mm) | 0.8 |
| Cutting edge count (CEDC) | 8 |
| Cutting edge effective length (LE) (mm) | 9 |
| Depth of cut maximum (APMX) (mm) | 9 |
| Face land angle (GB) (°) | 0 (zero) |
| Face land width (BN) (mm) | 0.12 |
| Fixing Hole Diameter (D1) (mm) | 4.8 |
| Hand (HAND) | R |
| Inscribed circle diameter (IC) (mm) | 13 |
| Insert Rake Angle (GAN) (°) | 10 |
| Insert Thickness (s) (mm) | 5 |
| Insert mounting style code (IFS) | 3: partly cylindrical, 40-60° countersink on one or two sides |
| Insert shape code (SC) | S: square |
| Insert size and shape (CUTINTSIZESHAPE) | CoroMill MF80 -1305 |
| Major cutting edge angle (KRINS) (°) | 89.5 |
| Operation Type (CTPT) | Medium |
| Substrate (SUBSTRATE) | HC |
| Wiper edge length (BS) (mm) | 1.6 |
