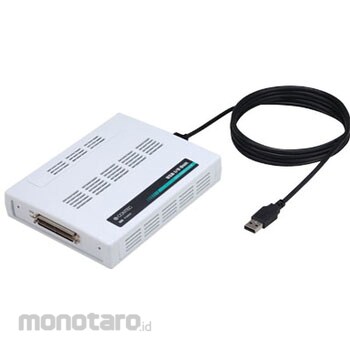

Contec Isolated Digital Input/Output Unit
#Grup produk P110282150
Spesifikasi
| Operating Temperature Range (°C) | 0~40 |
|---|---|
| Dimensions (WxDxH) (mm) | 180x140x34 (excluding protrusions) |
| Current Consumption (mA) | 550(Max.)(DC5V) |
| Number of Outputs | 64 points (1 common in 16-point units) |
| Operating Humidity Range (%RH) | 10-90 (however, no condensation) |
| Input Format | Optocoupler isolated input (compatible with current sink output) (negative logic) |
| Input Resistance (ohm) | 4700 |
| Isolation Voltage (Vrms) | 250 |
| Number of Input Points | 64 points (16 points can be used for interrupts) (1 common in 16-point units) |
| Output Format | Optocoupler isolated open collector output (current sink type) (negative logic) |
| Rated Output Current (A) | 0.1 (per point) (maximum) |
| Response Time (μs) | Within 200 |
| Suitable Connector | 100-pin 0.8mm pitch connector (F (female)) type x 2, HDRA-E100W1LFDT1EC-SL + (manufactured by Honda Tsushin Kogyo) equivalent |
