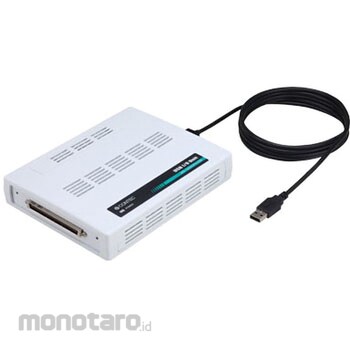

Contec Analog I/O Unit 500Ksps 16-Bit Resolution
#Grup produk P110282053
Spesifikasi
| Operating Temperature Range (°C) | 0~50 |
|---|---|
| Dimensions (WxDxH) (mm) | 180x140x34 (excluding protrusions) |
| Number of Outputs | 8 non-isolated outputs (LVTTL, level, positive logic) |
| Number of Channels | 2ch |
| Operating Humidity Range (%RH) | 10-90 (however, no condensation) |
| Input Format | Single-ended input or differential input |
| Input Impedance (ohm) | 1 x 10⁶ or more |
| Input range | Bipolar ± 10V, ± 5V, ± 2.5V, or Unipolar 0-10V, 0-5V, 0-2.5V |
| Number Of Output Channels | 2ch |
| Number of Input Points | 8 non-isolated inputs (LVTTL, level, positive logic) |
| Output Current (mA) | ±5 |
| Output Impedance (ohm) | 1 or more |
| Output Range | Bipolar ± 10V, ± 5V, ± 2.5V, ± 1.25V, or Unipolar 0-10V, 0-5V, 0-2.5V |
