Supports pipe diameters up to Φ60.5 (50A).
Can be used to gouge at angles up to 60°. Manual cutting feed and vise tightening.
Unique touch vise firmly grips the workpiece.
Vise moves. Economical as cutters can be used 5 to 10 times more. V-shaped jaws allow one-chucking without the need for an adapter!
Also capable of drilling and slotted holes.

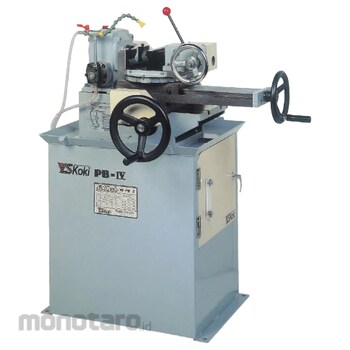

Y. S. Machinery Pipe Boring Machine Piecut PB Series
#Grup produk P110172260
Spesifikasi
| Cutting Oil Discharge | Trochoid Pump |
|---|---|
| Chucking | Manual (with clamping mechanism) |
| Cutting Feed | Manual |
| Angle (°) | Gouge: 0 to 60 |
| Motor | Three-phase 200V, 750W x 4P |
| Processing Capacity (mm) | Gouge: Φ17.3～60.5 |
| Dimensions HxLxW (mm) | 930×720×750 |
| Spindle Speed (rpm) | 50Hz: 54, 73, 208/60Hz: 65, 88, 250 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Use
For hollowing out iron and stainless steel pipes.Ulasan Produk
