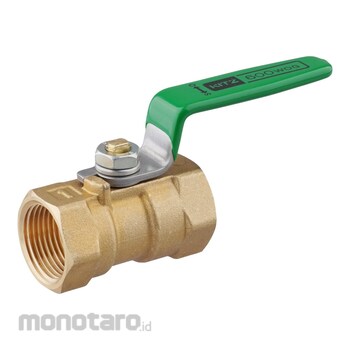

Kitz Ball Valve T Series
#Grup produk P110082985
Spesifikasi
| Shape | Straight |
|---|---|
| Material (Main Unit) | C3771BE |
| Dimension L (mm) | 71 |
| Dimension H (mm) | 48 |
| Ball Material | C3771BE (Cr plating) |
| Bore Diameter | Reduced bore |
| Class | 600 type |
| Dimension D (mm) | 100 |
| Dimensions d (mm) | 16 |
| Handle Type | Lever type |
| Material (Handle) | SUS430 |
| Material (Insert Nut) | C3771BE |
| Material (ball seat) | PTFE with glass fiber |
| Material (stem) | K metal |
| Maximum Operating Pressure (MPa) | 4. 12 (normal temperature water, oil, gas), 0. 98 (saturated steam) |
| Nominal Diameter A | 25 |
| Nominal Diameter B | 1 |
| Suitable fluid | Water, oil, gas, steam |
| TRUSCO Number | 163-6910 |
| Type of Connection | Screw-in type |
