Since it is a new mechanism with a top flange, it is easy to change from a manual valve to an automatic valve.
Equipped with a bottom stand, it can be easily fixed to a stand or panel.
By adopting a double O-ring for the stem, durability and sealing performance are improved. Also, since the upper O-ring groove is designed to be deeper than the lower O-ring groove,
Even if the stem breaks, the groove on the top will break first and the liquid inside will not flow out.
Since the handle also serves as a tightening jig, it becomes a convenient tightening jig by engaging the protrusion on the top of the handle with the recess of the union.
General-purpose ball valve, screw type.

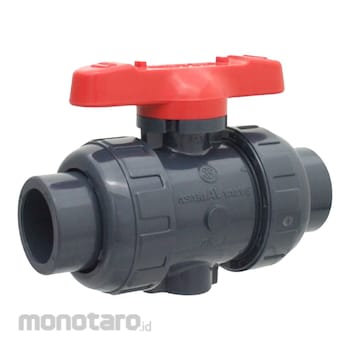

Asahi AV Ball Valve 21 Type / 21α Type + Screw Type
#Grup produk P110052878
Sebelum PPN:
Rp2.299.900 - Rp5.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Shape | Straight |
|---|---|
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Connector | Rc |
| Handle Type | T Type |
| Material (Main Unit) | U-PVC |
| Material (Seal) | EPDM |
| Maximum Allowable Pressure (MPa) | 1.0 (10.2kgf/cm²) |
| Operating Temperature Range (°C) | 0-50 |
| Type of Connection | Screw-in Type |
| Valve Type | Ball Valve |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
The new mechanism with a top flange makes it easy to change from a manual valve to an automatic valve. The bottom stand makes it easy to fix to a stand or panel. The stem uses a double O-ring to improve durability and sealing. In addition, the upper O-ring groove is designed to be deeper than the lower O-ring groove, so even if the stem breaks, the upper groove will break first, and there will be no leakage of the internal liquid. The handle also serves as a tightening tool, so by engaging the protrusion on the top of the handle with the recess of the union, it becomes a convenient tightening tool.Use
General-purpose ball valve, screw-in type.Ulasan Produk
