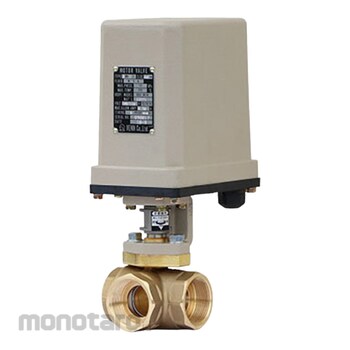

VENN Brass Ball Type Three-Way Electric Valve [Screwed, Reduce Bore, For On/Off Control]
#Grup produk P110040891
Sebelum PPN:
Rp20.999.900 - Rp36.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material (Main Unit) | C3771 |
|---|---|
| Protection Class | Rainproof Type (Using Cabtire Cable) |
| Operating Pressure Range (MPa) | 1.0 or Less |
| Rated Voltage (V) | AC100 / 110 50 / 60Hz or AC200 / 220 50 / 60Hz |
| Rated Current (A) | [Capacity/Current Switching Time] 0.22 (AC100V), 0.11 (AC200V) |
| Allowable Leakage | None (Pressure Gauge Visual Inspection) |
| Ambient Temperature (°C) | -10 - 50 |
| Ball Material | C3771 Nickel Chrome Plating |
| Cover Material | AC4C-T6 |
| End Connection | JIS Rc Thread |
| Fluid Temperature (°C) | -10 to 100 (No Freezing) |
| Insulation Resistance (MΩ) | Over 50 |
| Mechanism | With manual mechanism |
| Operation | On / Off |
| Suitable fluid | Liquid, air, gas |
| Type of Insulation | Class E |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
