Schmidt couplings are off-center joints that utilize the crank motion of the links.
Parallel movement of the axis is possible.
Even when rotation is stopped or under load operation, it can be moved freely within the displacement range of the driving and driven shafts.
Absorbs sliding movement
Absorbs radial sliding movement on the driving and driven sides.
Space saving
It can be shorter in the axial direction than the conventional universal joint + spline shaft combination, and a large amount of eccentricity can be obtained.
Few errors:
There are almost no fluctuations in angular velocity, transmission torque, or backlash.
Miki pulley Schmidt Coupling
#Grup produk P110024264
Spesifikasi

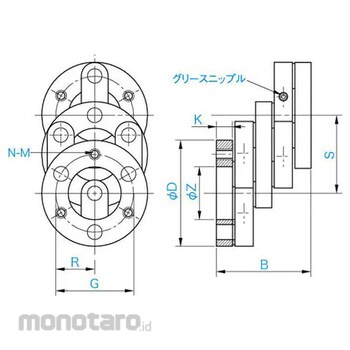

| Dimension G (mm) | 90 |
|---|---|
| Dimensions k (mm) | 15 |
| Dimensions s (mm) | 90 |
| Dimension Z (mm) | 50(H7) |
| Allowable Eccentricity (mm) | 85(S×0.95)/165(straight line) |
| Bearing Basic Load (N) | 8920 |
| Dimension N (mm) | 3 |
| Dimensions d (mm) | Φ120 |
| Material (main body) | S45C equivalent |
| Maximum Rotation Speed (rpm) | 2000 |
| Moment of Inertia (kg.m²) | 1.15× 10-2 |
| Number of links | 3×2 |
| Regular torque (N・m) | 196 |
| Starting Torque (N・m) | 600 |
| Thread Diameter M | M12 |
| Total Length (mm) | 101 |
