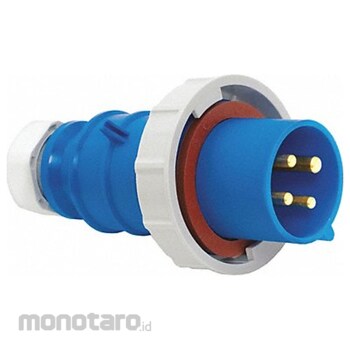

Non Brand Pin & Sleeve Plug
#Grup produk P109992172
Sebelum PPN:
Rp2.699.900 - Rp8.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121402 |
|---|---|
| Connection Orientation | Straight |
| Grounding | Grounded |
| Grounding Style | IEC |
| Reverse Service | No |
| Shrouded | Yes |
| Ul 94 Flammability Rating | HB |
| Wire Connection Type | Screw Terminals |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These pin and sleeve plugs have watertight constructions that protect their internal components from liquids, debris, and dust. They provide safe electrical connections when mated with compatible watertight devices in outdoor and wet applications like food processing plants, beverage manufacturing, agriculture machinery, and chemical processing plants.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Pin and Sleeve Plug Current Rating 20 A Housing Color Blue IP Rating IP67 Number of Poles 2 Number of Wires 3 Phase Single Voltage Rating 250V AC Wire Connection Type Screw Terminals Cap Type No Cap or Cover Connection Orientation Straight For Maximum Cable Diameter 0.83 in For Minimum Cable Diameter 0.33 in Grounding Grounded Grounding Style IEC Housing Material Nylon Maximum Wire Size 10 AWG Minimum Wire Size 14 AWG NEMA Enclosure Rating Not Rated Outside Diameter 2.87 inUlasan Produk
